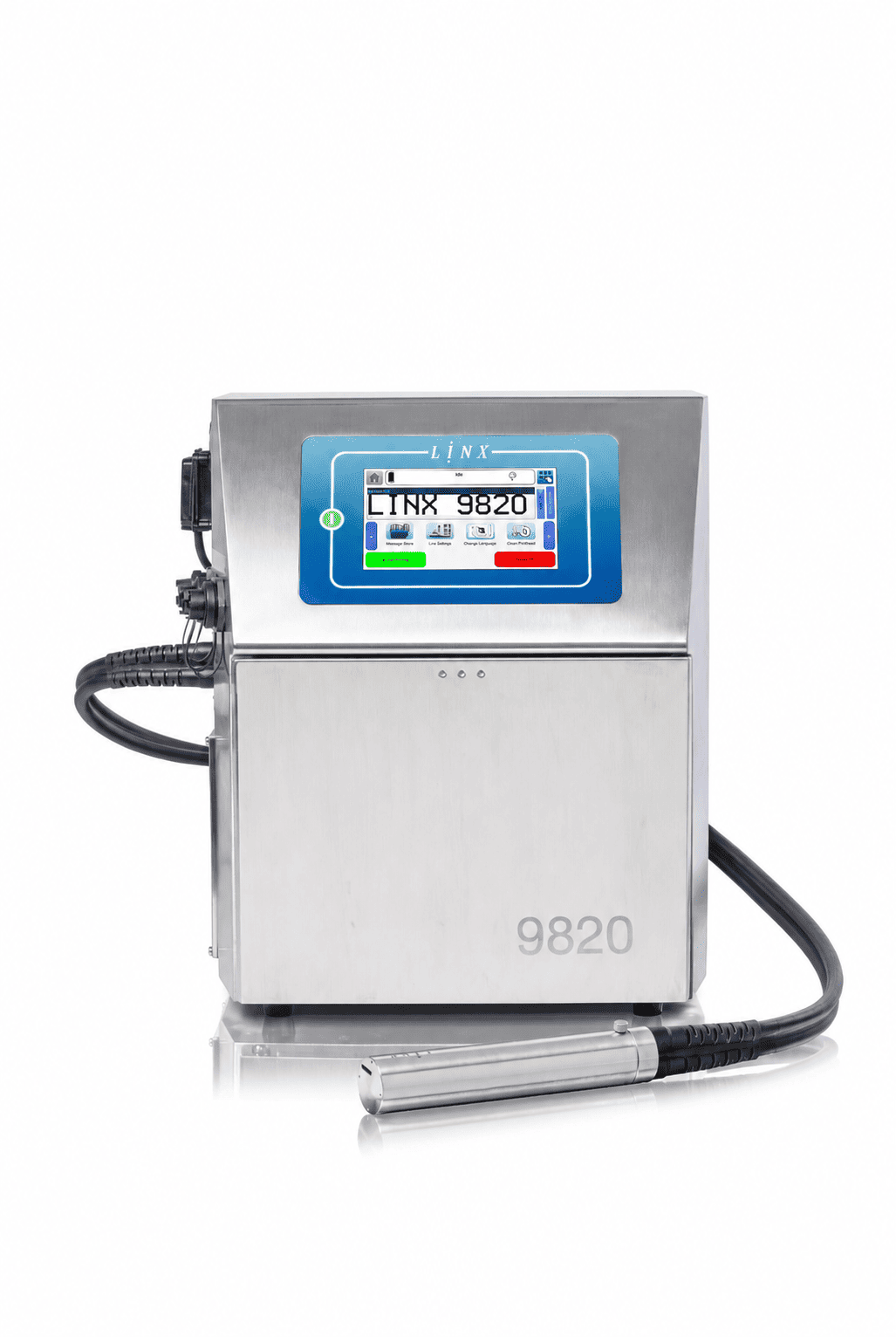

Linx 9820 series
Linx 9820 series
The Linx 9820 is a flexible Continuous Inkjet (CIJ) printer engineered for higher-throughput production applications. It combines dependable coding performance with features designed to reduce downtime, simplify operator tasks, and improve production changeovers. The Linx 9820 supports up to 3 lines of print and a wide range of coding formats, while providing flexible connectivity and production management options.
-
Flexible coding capability:
Prints up to 3 lines of text with support for text, symbols, numbers, dates, times, graphics, logos, sequential numbering, barcodes, Data Matrix, GS1 Data Matrix, and QR codes. -
High-speed printing:
Delivers speeds of up to 6.25 m/s for single-line printing and up to 2.46 m/s for two-line printing using the MK11 Midi printhead. The MK11 Midi supports character heights from 1.8 mm to 20 mm. -
AutoFlush printhead cleaning:
Provides a unique automatic start and stop cleaning routine designed to prevent blocked nozzles, reduce ink build-up and daily maintenance, and eliminate solvent waste during the cleaning cycle. -
Linx PrintProtect® battery backup:
Allows printing to continue for up to 3 minutes during power interruptions and provides up to 9 minutes of battery-powered jet operation when moving the printer between production lines. -
Fast and repeatable changeovers:
Stores up to 1,000 print messages and 50 line settings. Line settings can also be backed up and transferred between printers using a USB drive. -
7-inch full-colour touchscreen:
Features an intuitive icon-led interface, multilingual language selection, a customisable home screen, password-protected functions, prompted text fields, and guided on-screen maintenance wizards. -
GS1 Data Matrix code builder:
Enables operators to create GS1-compliant Data Matrix codes through a step-by-step interface designed to reduce coding errors. -
Linx QuickSwitch®:
Enables real-time message changes from external production devices or a barcode scanner, helping accelerate changeovers and reduce message-selection errors. -
Linx Iris® Vision System compatibility:
Supports automated code inspection to detect missing codes, incorrect positioning, missing characters, invalid dates, distorted characters, and other coding issues. Configurable alarms can alert operators or stop the production line. -
Remote monitoring and integration:
Linx PrinterNet® and REST API connectivity provide remote printer monitoring, production insights, automated code setup, and integration with IT or production systems. -
Active Airflow Control®:
Can reduce solvent consumption by up to 42%, helping lower running costs and reduce the frequency of printer refills. -
EasiChange® service module:
Enables servicing in approximately 30 minutes with only 0.5 litres of ink changed. The Linx 9820 can achieve service intervals of up to 12 months, depending on the ink type. -
Extended shutdown capability:
Allows the Linx 9820 to be shut down for up to 3 months without flushing or draining, helping minimise maintenance requirements during planned production shutdowns. -
Flexible connectivity:
Includes Ethernet, USB, REST interface, Extended QuickSwitch, RCI, product detector, shaft encoder, vision camera connections, and alarm outputs for integration with production-line equipment. -
Available printhead:
Available with the MK11 Mini Printhead 50 μm for applications requiring smaller character printing and greater coding flexibility across a wide range of products and packaging.MK11 Mini: 50 μm printhead for smaller character printing and flexible coding across various products and packaging.

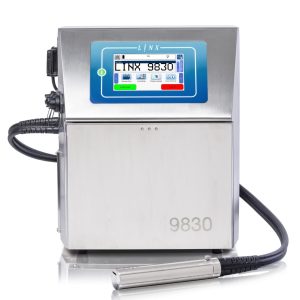

Linx 9830 series
Continuous Ink JetThe Linx 9830 is part of the Linx 9800 Series of Continuous Inkjet (CIJ) printers, engineered to help manufacturers reduce downtime, lower operating costs, and improve coding reliability. Featuring AutoFlush® printhead technology, Linx PrintProtect® battery backup, and a user-friendly 7-inch colour touchscreen, the Linx 9830 delivers consistent coding performance while simplifying routine operation and maintenance. It also supports advanced coding formats and seamless integration with modern production systems.
- Advanced coding capability: Prints up to 6 lines of text with support for Data Matrix, GS1 Data Matrix, QR Codes, barcodes, logos, graphics, dates, and sequential numbering.
- High-speed printing: Delivers speeds of up to 7.50 m/s for single-line coding using the MK11 Midi printhead.
- AutoFlush® printhead cleaning: Automatically cleans the printhead during start-up and shutdown to prevent blocked nozzles, reduce maintenance, and minimise unplanned downtime.
- Linx PrintProtect® battery backup: Allows printing to continue for up to 3 minutes during power interruptions and enables faster production line changeovers.
- Fast and repeatable changeovers: Stores up to 1,000 print messages and 50 production line settings for fast, repeatable, and error-free product changeovers.
- 7-inch full-colour touchscreen: Features intuitive icon-based navigation, a multilingual interface, guided maintenance wizards, and a GS1 Data Matrix code builder for easy operation.
- Monitoring and production integration: Compatible with Linx Iris® Vision System, PrinterNet®, QuickSwitch®, and REST API for automated code inspection, remote monitoring, and production line integration.
-
Available printhead:
The Linx 9830 is available with the MK11 Mini Printhead 50 μm, designed for compact and precise coding applications requiring smaller character sizes.
MK11 Mini: 50 μm printhead for compact and precise coding applications requiring smaller character sizes.
Linx 8900 Series
Continuous Ink JetDesigned to make operation and efficiency easier than ever.
Spend more time coding and increasing your output with a Linx 8900 CIJ printer – the easiest to use Linx printer on the market. The Smartphone-inspired screen makes message selection, creation and printer operation faster than ever. Self-service and minimal intervention increases your production uptime. Print onto both primary and secondary packaging with one printer. Try a Linx 8900 for yourself Key benefits • Flexible coder prints up to 3 lines of text, numbers, barcodes and logos • Simple self-service with up to two years between services - no engineer required • Quick-change fluid cartridges • IP55-rated stainless steel enclosure as standard with IP65 option • Real-time output measurement and line stoppage logs • Range of ink types and colours for both consumer and industrial marking • Date freezing for batch printing – ideal for 24/7 operations • Variable character spacing improves vision system recognition • Prompts to ensure correct date and text is added to message • Simple to insert text or logos into messages • Linx Printernet enabled - remote monitoring and control of Linx 8900 printers via a secure, cloud-based service Download PDF Linx 8900
Linx 9840 series
Continuous Ink JetThe Linx 9840 is part of the Linx 9800 Series of Continuous Inkjet (CIJ) printers, engineered for manufacturers requiring maximum print speed, reliable performance, and minimal maintenance. Featuring AutoFlush® automatic printhead cleaning, Linx PrintProtect® battery backup, and advanced production connectivity, the Linx 9840 helps reduce downtime while delivering high-quality coding for demanding industrial applications. Its intuitive 7-inch colour touchscreen and built-in productivity features simplify operation and support efficient production line management.
- High-speed coding: Capable of printing at speeds of up to 9.10 m/s for single-line coding and 10 m/s with Super-fast Tower Print for cable and extrusion applications.
- Advanced coding capability: Prints up to 6 lines of text with support for Data Matrix, GS1 Data Matrix, QR Codes, barcodes, logos, graphics, dates, and advanced sequential numbering.
- AutoFlush® printhead cleaning: Automatically cleans the printhead during start-up and shutdown to help prevent blocked nozzles, reduce maintenance, and minimise unplanned production stoppages.
- Linx PrintProtect® battery backup: Allows continuous printing for up to 3 minutes during power interruptions and provides up to 9 minutes of battery power for fast production line changeovers.
- Fast and repeatable changeovers: Stores up to 1,000 messages and 50 production line settings for fast, repeatable, and error-free product changeovers using QuickSwitch® and Message Studio™.
- 7-inch full-colour touchscreen: Features icon-led navigation, a multilingual interface, guided maintenance wizards, prompted data entry, and an integrated GS1 Data Matrix code builder for simple and mistake-free operation.
- Monitoring and production integration: Compatible with Linx Iris® Vision System, PrinterNet®, REST API, and Active Airflow Control technology for automated code inspection, remote monitoring, reduced solvent consumption, and seamless production line integration.
-
Available printhead:
The Linx 9840 is available with the MK11 Mini Printhead 50 μm, designed for precise coding applications requiring smaller character sizes.
MK11 Mini: 50 μm printhead for precise coding applications requiring smaller character sizes.

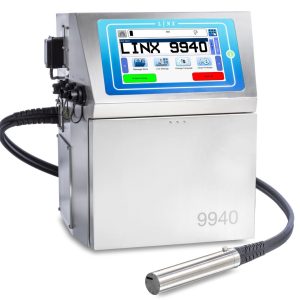

Linx 9940 series
Continuous Ink JetThe Linx 9940 is part of the Linx 9900 Series of Continuous Inkjet (CIJ) printers, developed for fast coding in demanding production applications. With high-speed printing capability, AutoFlush® printhead technology, PrintProtect® battery backup, and an intuitive 10-inch colour touchscreen, the Linx 9940 helps maximise production uptime while reducing maintenance and operating costs. It also supports advanced coding features, including GS1 Data Matrix, QR Codes, and remote production management.
- High-speed coding: Delivers print speeds of up to 9.10 m/s for single-line coding and 10 m/s with Super-fast Tower Print for cable and extrusion applications.
- Advanced coding capability: Prints up to 6 lines of text with support for barcodes, QR Codes, GS1 Data Matrix, logos, graphics, and sequential numbering.
- AutoFlush® printhead cleaning: Automatically cleans the printhead during start-up and shutdown to reduce nozzle blockages and minimise unplanned downtime.
- PrintProtect® battery backup: Keeps the printer operating during power interruptions and supports fast production line changeovers without waiting for the printer to restart.
- Fast and repeatable changeovers: Stores up to 50 named production line settings and 1,000 messages for fast, repeatable, and error-free code selection.
- Extended service intervals: The EasiChange® service module provides service intervals of up to 24 months, helping reduce scheduled maintenance and lower operating costs.
- 10-inch full-colour touchscreen: Features guided maintenance wizards, a multilingual interface, and support for Linx Iris®, PrinterNet®, QuickSwitch®, and REST API for seamless production line integration.
-
Available printhead:
The Linx 9940 is available with the MK11 Mini Printhead 50 μm, designed for smaller character printing and 2D codes while helping reduce ink consumption by up to 48%.
MK11 Mini: 50 μm printhead for smaller character printing and 2D codes, with ink consumption reduced by up to 48%.
