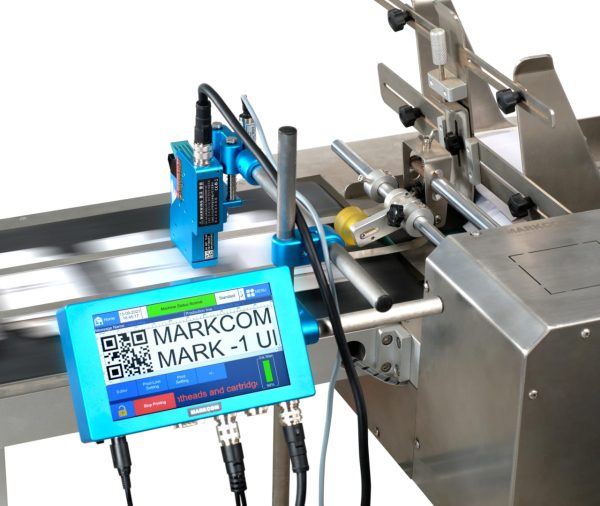

Mark 1 – Ultra

Specification :

• Panel Control: 7 ” color touch screen
• User Interface: Simple – user friendly UI
• Operating System: Embedded Linux operating system.
• Hardware: American TI AM3358 industrial -grade CPU/USA Xilinx S pant6 industrial-grade FPGA/TU dedicated ASIC chip
• Communication Interface: USB/RJ45 to RS232
• External Interface: Photocell (Included)
  0ptional: -Encoder/reverse inverting control
  -Tower Light Indicator
• Print Engine: TU Technology
• Message Store Capacity: Up to 1000
• Multi-Laguanges: English, Chinese, Arabic, Japanese, Korean, Thai, Vietnamese, French, German, Finnish, Italian, Norwegian, Portuguese, Spanish, Russian, Danish.
• Indicator: Display alarm indicator
• Print Resolution: Resolution up to 600 x 600 DPI (vertical: 100DPI, 150DPI, 300DPI, 600DPI, Iandscape: 30-600 DPI precision adjustment).
• Print Density: 1 to 6 one-touch density.
• Print Speed: 406m/90DPI, 304m120DPI, 240m/150DPI, 120m/300DPI,
  60m/600DPI.
• Print Distance: 2 4 mm
• Print Capability: AIpha numeric, date, time, month code, week code, alpha hours, counter, logos.
• Barcodes: OR Code, Data Matrix, EAN8, EAN12, Code128, Code39, UPCA, UPCE.
• Nozzle Type: Thermally foamable head TIJ2.5 .
• Ink Various: Water-based, Solvent-based.
• Catridge Chip: Non-contact RFID, automatic identification and recording ink .
• Electirc Requirements: Power adaper 100-240V AC input, 30V 4A DC output .
• Working Environtment: Temperature of 0-45 °C / humidity of 30-70% Rh
• Weight: 800gr
• Dimensions: Controller: 195,1 x 110,1 x 36 mm
  Print head: 114 x 79 x 163,8 mm
• Mounting Orientation: Side (Horizontal) – Downside
• Printhead Mounting: Anti-Shock Mechanism
